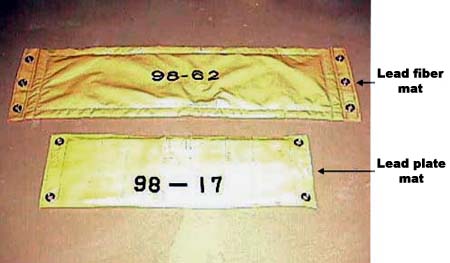

Lead fiber mats, lead plate mats
1.Use
Attach to high-dose piping in order to shield radiations in controlled areas of the Shimane Nuclear Power Station.
2.Major specifications
Lead fiber mats
(lead-fiber nonwoven fabric)
| (1) Exterior dimensions | : Approx. 1100 mm × 300 mm |
|---|---|
| (2) Shield dimensions | : Approx. 1000 mm × 300 mm |
| (3) Lead equivalent | : Approx. 3 mm |
| (4) Weight | : Approx. 10 kg |
Lead plate mats
(lead plate lamination)
| (1) Exterior dimensions | : Approx. 760 mm × 240 mm |
|---|---|
| (2) Shield dimensions | : Approx. 660 mm × 200 mm |
| (3) Lead equivalent | : Approx. 10 mm Approx. 1 mm × 10 mats |
| (4) Weight | : Approx. 15 kg |
